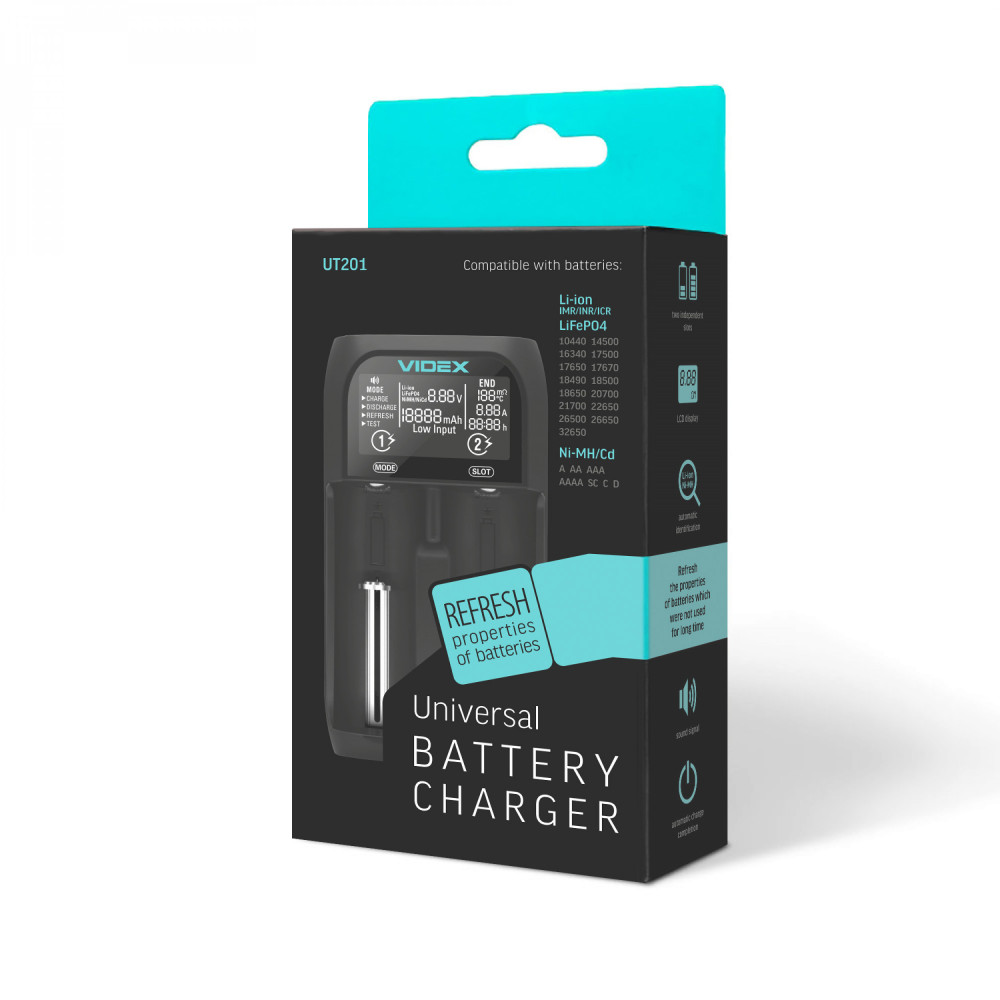

Universal battery charger Videx VCH-UT201, Li-ion/IMR: 10440, 14500, 16340, 17500,17650,17670, 18490, 18500, 18650, 20700, 21700, 22650, 26500, 26650, 36250; Ni-MH/Cd: АААА, ААА, АА, А, SC,C, D Input: USB Type-C, DC 5V/2A, 10W Output 1: DC 4,2V 1A X2/2A X

SKU code:
VCH-UT201
BAR code:
4820118296562
Manuālis:
  • Base:
    10440, 14500, 16340, 17500,17650,17670, 18490, 18500, 18650, 20700, 21700, 22650, 26500, 26650, 36250; Ni-MH/Cd: АААА, ААА, АА, А, SC,C, D
  • Warranty (y):
    2
  • Measurements (mm):
    0.135 0.073 0.037
  • Outer box:
    20
  • Housing colour:
    Black

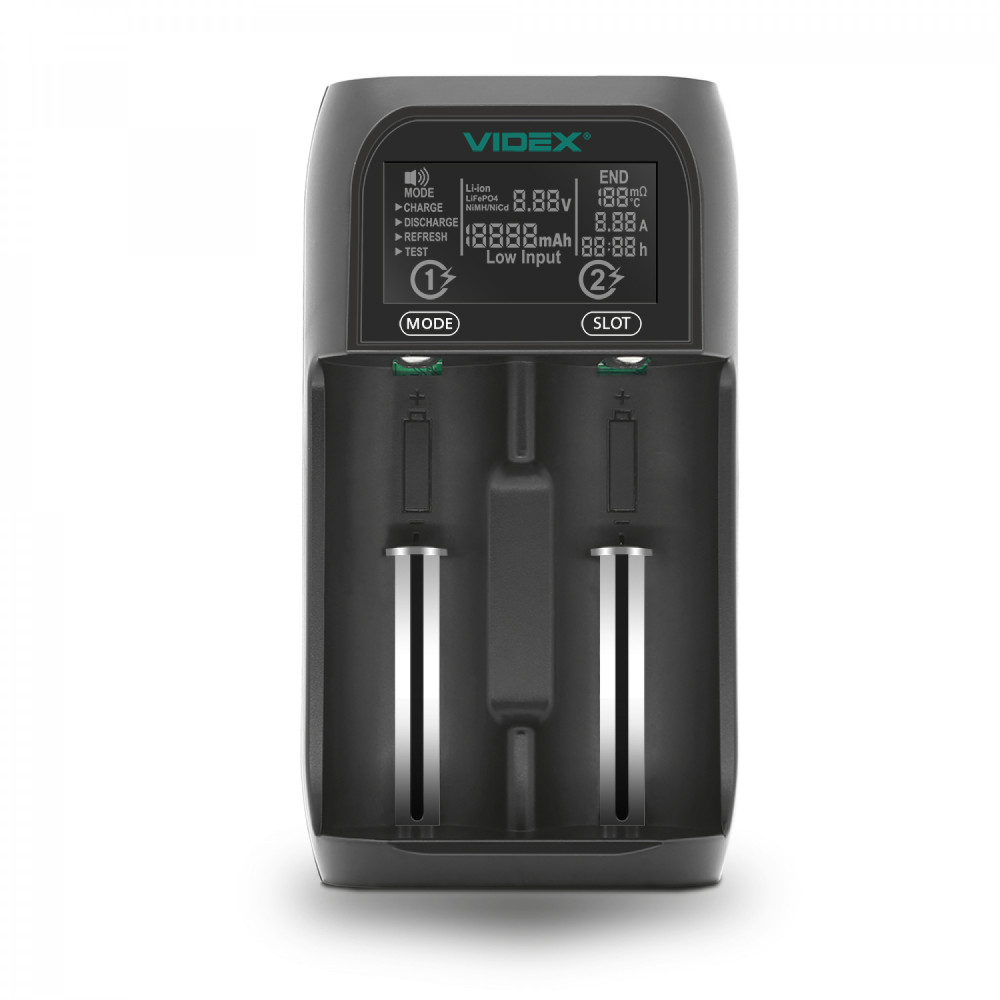

The charger is designed to safely recharge, discharge, test and recover rechargeable batteries. Charger for charging Ni-MH/Ni-Cd, Li-ion/MR/INR/ICR/LiFePO4 batteries. The charger case has a modern and ergonomic design, equipped with an LCD display and two independent channels for accumulators. The charger protects accumulators from short circuit, overcharge, overheating and incorrect polarity. With Li-ion/MR/INR/ICR and Ni-MH/Ni-Cd batteries, the device works in automatic mode and does not require monitoring during charging. Charger operating modes: CHARGE - battery charge. The charging current depends on the type and number of batteries installed. The screen displays voltage, amperage, battery type and state of charge in real time. DISCHARGE - battery discharge. It allows you to extend the battery life. REFRESH - allows you to restore the properties of batteries that have not been used for a long time. TEST - battery testing. Allows you to measure the current capacity of the battery. The maximum capacity is calculated in charge-discharge-charge mode. The POWER BANK function allows you to charge external devices when using lithium-ion batteries in the device. To do this, you need to connect a USB cable to the charger with charged batteries. The device connected in this way will receive power with a current of 2A and a voltage of 5V until the batteries are discharged. ATTENTION - the AC power supply unit is not included in the set!
