PIR motion and light sensor VIDEX VL-SPW15W 1200W IP65 White

Home PRODUCTS Electrical Accessories Sensors

SKU code:

VL-SPW15W

BAR code:

4820246488525

Manuālis:

On-mode power (W):

1200 / 300 W infrared
Rated voltage (V), frequency (Hz):

220-240 V, 50/60 Hz
Beam angle (°):

160
Place of application:

Iekštelpas/Ārtelpas
On/Off cycles:

10sec-15min
Ingress protection (IP):

IP65
Warranty (y):

3
Operating temperature range (°C):

-20°C ~ + 40°С
Dimmable:

< 3 -2000 Lx
Measurements (mm):

51.5x80x119.5
Outer box:

20
Housing colour:

Balta
Housing material:

Polycarbonate (PC)
Motion sensor:

Yes
Range (Distance in m):

12m

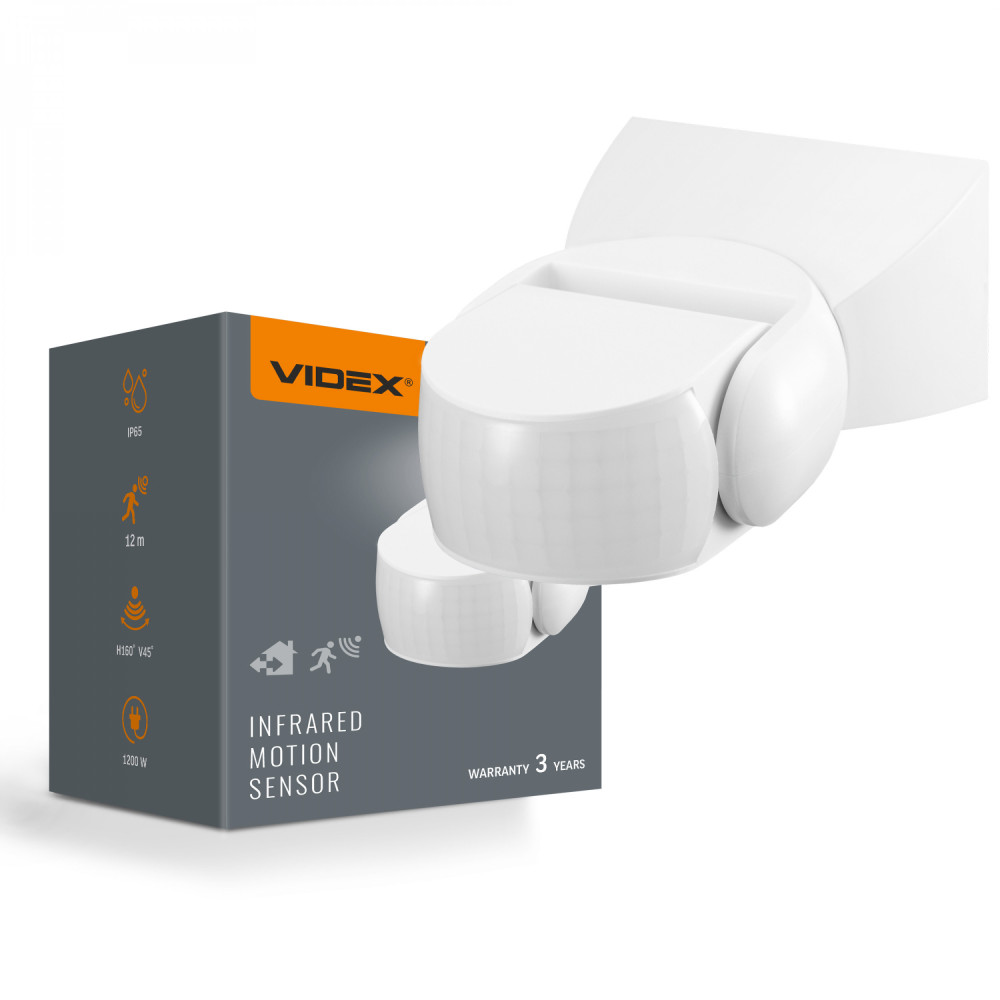

The VIDEX SPW15 infrared motion and light sensor helps control the lighting system and records the movement of objects. The sensor automatically turns on and off the lighting depending on the detection of movement in the sensor's coverage area. Ideal for lighting industrial, warehouse facilities, parks, residential areas, recreation areas, roads, etc. It is not afraid of rain because it has IP65 protection, so it can be used both indoors and outdoors. The recommended installation height is 1.8 - 2.5m. - The delay is adjustable in the range of 10s - 15min. - Thanks to the IP65 protection class, the sensor is protected from dirt and water, so it can be safely used both in rooms with high humidity and outdoors without harm to the device. - Response time - 0.6 - 1.5m/s. - Allows you to adjust the light threshold (LUX) in the range from 3Lx to 2000Lx. - Detection distance – up to 12m (at temperature <24°C). - Maximum load power: incandescent lamp for general lighting – 1200W; fluorescent lamp – 400W; LED lamp – 300W. - The sensor tilt angle is adjustable horizontally by 30° and vertically by 180°. - The detection angle when installing the sensor on horizontal surfaces is 160° and on vertical surfaces – 45°. - The product warranty period is 3 years.
