BULKHEAD LED VIDEX VL-BHD02-09CBB 09W-3CCT-SQUARE-BLACK

Home PRODUCTS Garden and Architectural Lights Architectural Lights

SKU code:

VL-BHD02-09CBB

BAR code:

4820246487795

Manuālis:

Energy class:

On-mode power (W):

9
Useful luminous flux of the light source (Lm):

1000
Correlated color temperature (K):

2800/4000/6000
Energy class:

E
Rated voltage (V), frequency (Hz):

AC 220-240 V, 50/60 Hz
Beam angle (°):

160°
Place of application:

Indoor / Outdoor
Color rendering index (CRI):

Ra > 90
Lifetime (h):

50000h
On/Off cycles:

20000
Ingress protection (IP):

IP65
Warranty (y):

3
Operating temperature range (°C):

-30°C ~ + 50°С
Dimmable:

No

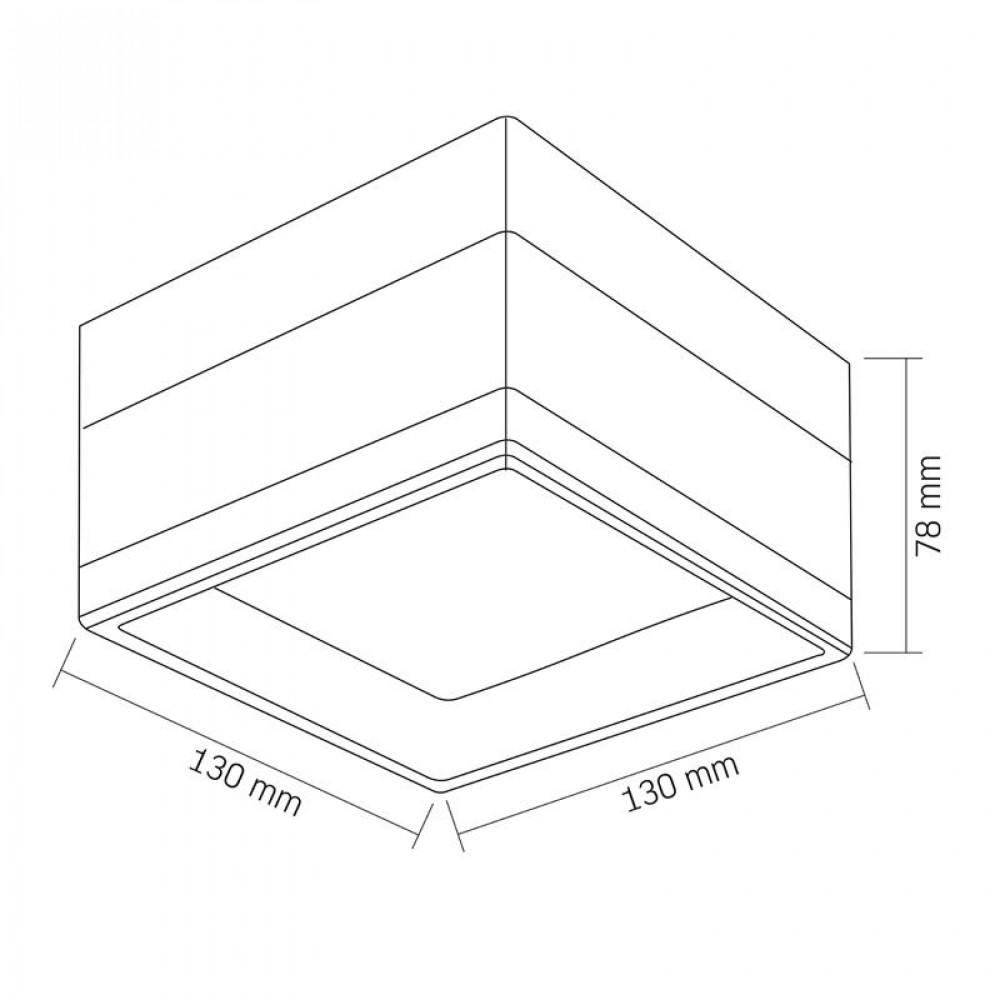

Measurements (mm):

130x130x78
Outer box:

30
Housing colour:

Black
Diffuser material:

PC
Housing material:

Plastic
Impact protection (IK):

IK07
Motion sensor:

No

Wall-And-Ceiling-Mounted Led Light Fitting VIDEX BHD02 9W 2800-4000-6000K is designed for both indoor and outdoor use. It is ideal for illuminating building facades, entrance areas, spaces under canopies, balconies, terraces, staircases, and rooms with high humidity levels. In addition to its high level of dust and moisture protection (IP65), the luminaire allows you to select different light color temperatures. It ensures natural color rendering (Ra > 90) and offers excellent resistance to external influences. The fixture is surface-mounted and can be installed on both vertical and horizontal surfaces. The compact dimensions are only 130×130×78mm. A key feature of this model is the adjustable color temperature that can be set according to your needs: - 2800K (warm white): ideal for decorative illumination of facades, terraces, and relaxation areas, creating a cozy atmosphere. - 4000K (neutral white): a versatile option for lighting entrances, parking areas, yards, or walkways. - 6000K (daylight): best suited for work areas, driveways, gates, or spaces under video surveillance, enhancing visibility and contrast at night. The color temperature can be adjusted using the color temperature adjuster located on the back of the housing, which can be moved to the desired color temperature (2800K, 4000K, or 6000K). Thanks to its minimalist and modern design, the luminaire complements any architectural style. The transparent frame around the diffuser creates a subtle backlight effect, giving the fixture a visually lighter and elegant appearance. TECHNICAL SPECIFICATIONS: - Power – 9W - Luminous flux – 1000 Lm - Color temperature: 2800–4000–6000K - Luminous efficacy – 111 Lm/W - Energy efficiency – A+ (UA) / E (EU) - Beam angle – 160° - Operating voltage – AC 220–240V - Uniform, flicker-free illumination with instant start-up and no UV radiation - Service life – 50 000 hours - Number of ON/OFF cycles – 25 000 - Ingress protection – IP65 - Impact protection – IK08 Manufactured from safe, high-quality materials. Designed for long-lasting use and backed by a 3-year warranty.
