Street light VIDEX 80-100-120W 16800Lm, 3000/5000/6500K 220V, IP65, VL-SLP01-120B
-
On-mode power (W):80-100-120W (140 Lm/W)
-
Useful luminous flux of the light source (Lm):16800
-
Correlated color temperature (K):3000/5000/6500K
-
Rated voltage (V), frequency (Hz):AC 180-265 V, 50/60 Hz
-
Beam angle (°):90°
-
Place of application:Outdoor
-
Color rendering index (CRI):Ra > 80
-
Lifetime (h):50000h
-
On/Off cycles:30000
-
Ingress protection (IP):IP65
-
Warranty (y):3
-
Operating temperature range (°C):-30°C ~ + 50°С
-

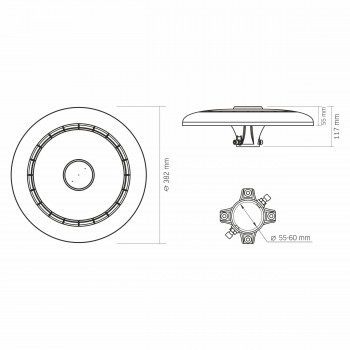

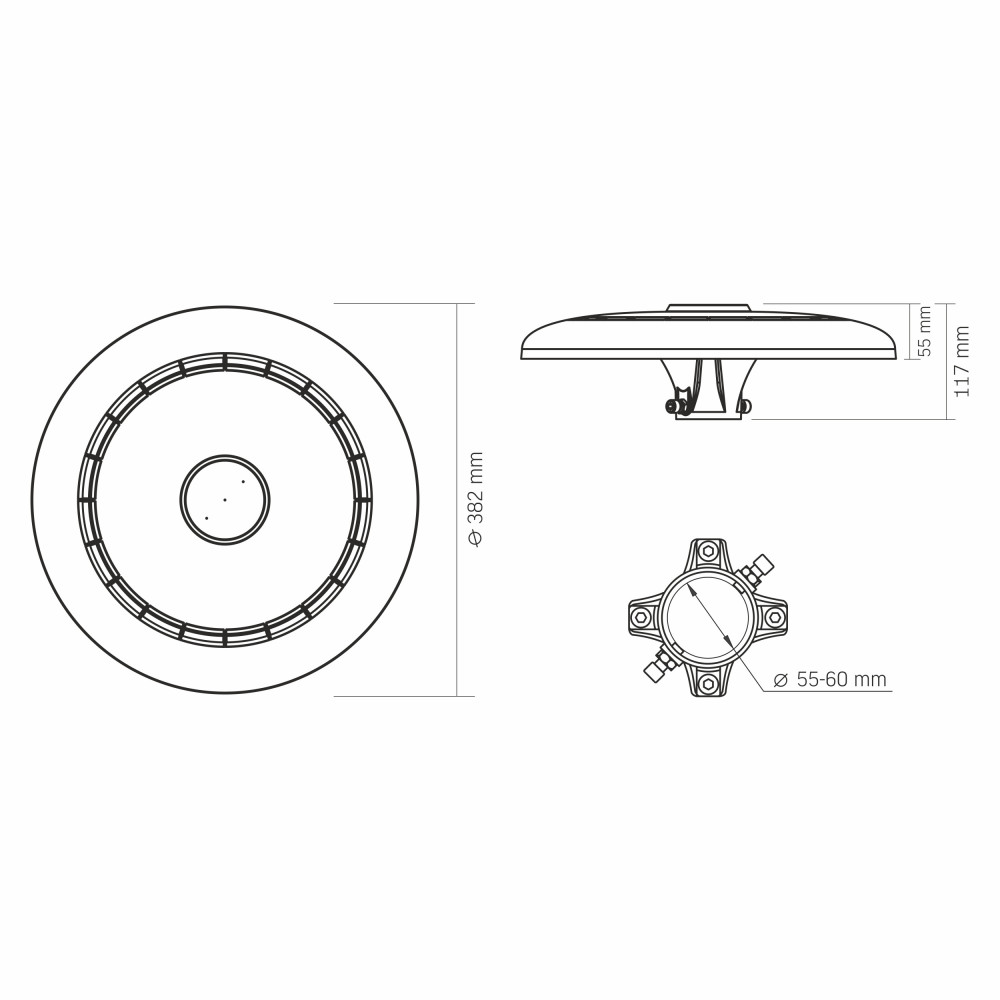

Measurements (mm):d382xh117
-
Outer box:2
-
Housing colour:Black
-
Housing material:Aluminum alloy, Polycarbonate (PC), Tempered glass
-
Motion sensor:No

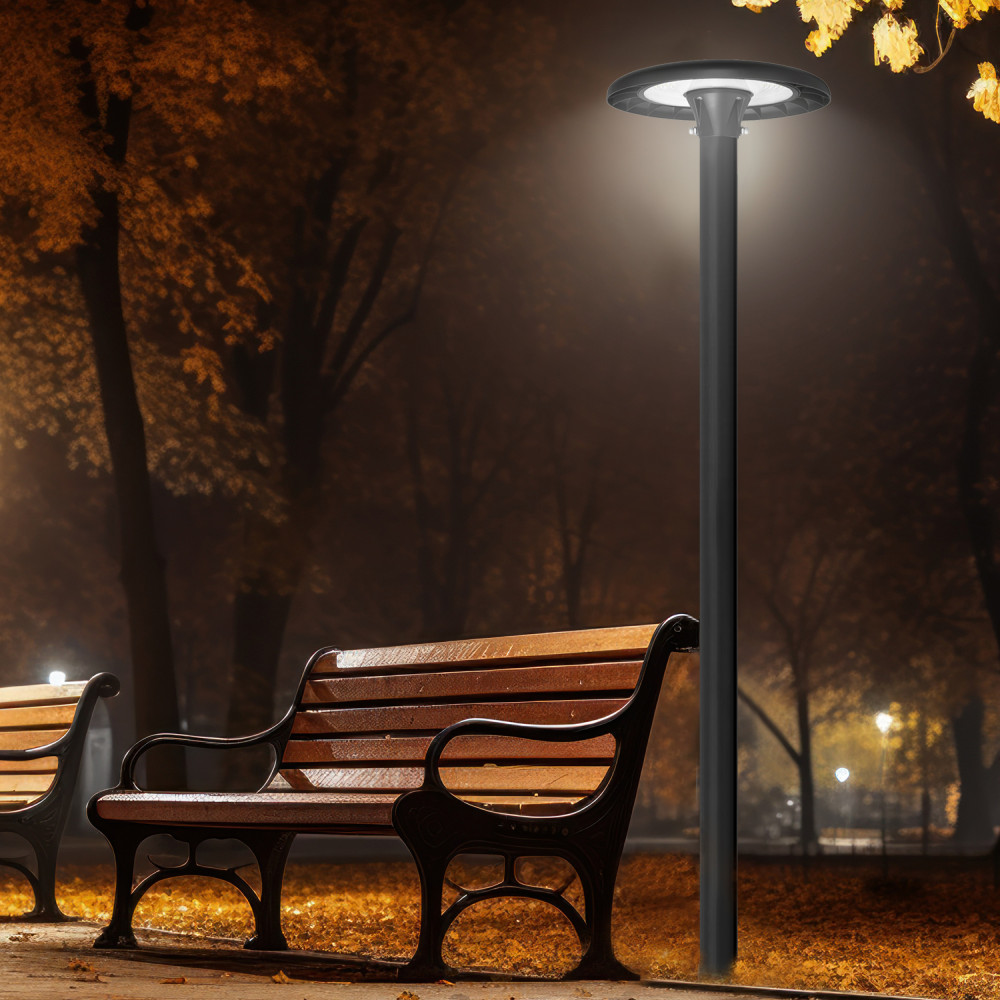

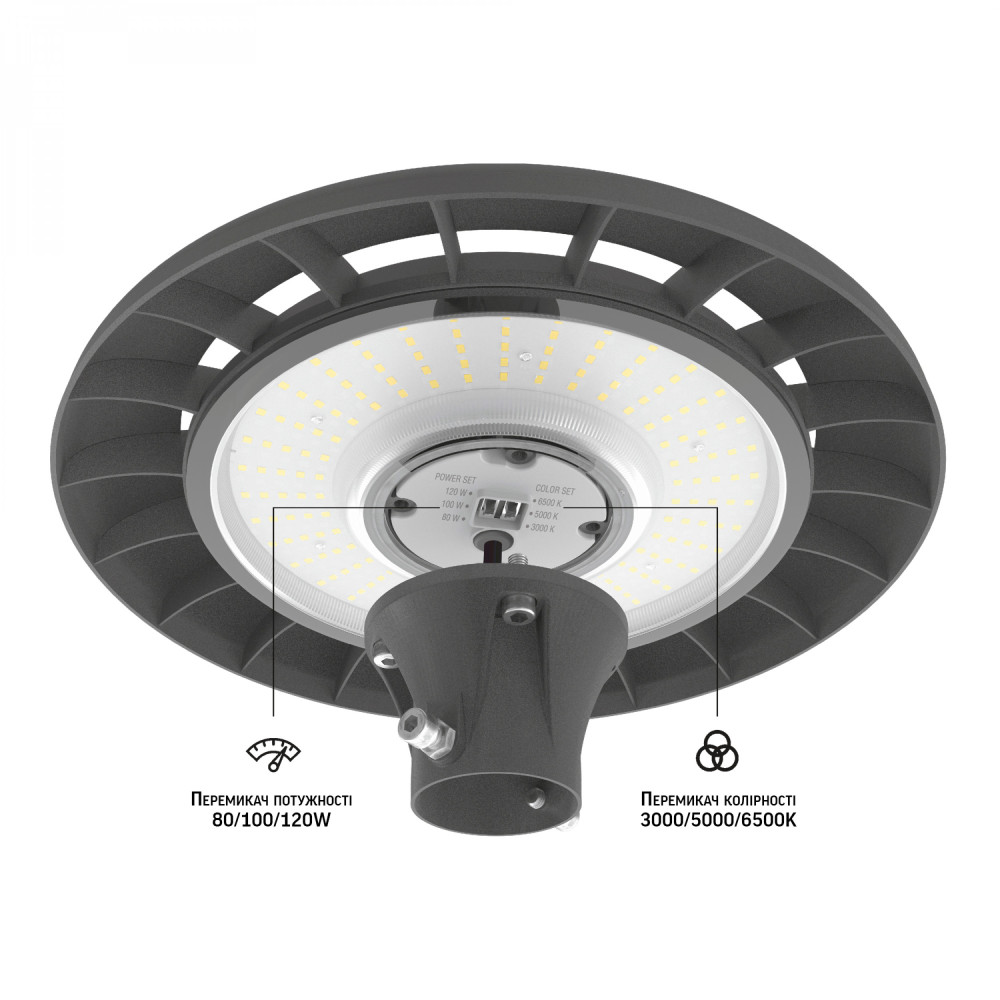

LED Park Light VIDEX VL-SLP01-120B IP65 120W 220V is designed for illuminating park alleys, jogging and pedestrian paths, and boulevards. Thanks to its construction, the lamp can illuminate the area beneath it at 360°, making it optimal to install it in the center of walkways. The fixture is not intended for indoor use! FEATURES: - rated for 25 000 ON/OFF cycles - luminous flux – 16800Lm - beam angle – 120° - color temperature – 3000K–5000K–6500K, adjustable via the built-in switch - service life – 50 000 hours - ingress protection – IP65 - impact protection class – IK08 PACKAGE CONTENTS: 1. Light fixture 2. Holder with 4 screws 3. Hex-head screws for pole installation (2 pcs) 4. User manual 5. Individual packaging INSTALLATION AND CONNECTION INSTRUCTIONS Always disconnect the power supply before installation. Read the manual before proceeding. Installation must be carried out by a qualified specialist. Please perform the installation and connection with appropriate qualifications. Install and connect according to the wiring diagram (see the manual). To maintain the declared level of dust and moisture protection, the connection must be made using a terminal block (not included) with an equivalent protection rating. The product has a grounding wire. Failure to connect the grounding wire may result in electric shock. Before first use, check the correctness of mechanical fastening and electrical connections. The product may only be used with a power network that meets the energy requirements and quality standards established by law. WARNING! Do not look directly at the LED beam. The warranty period is 3 years.
