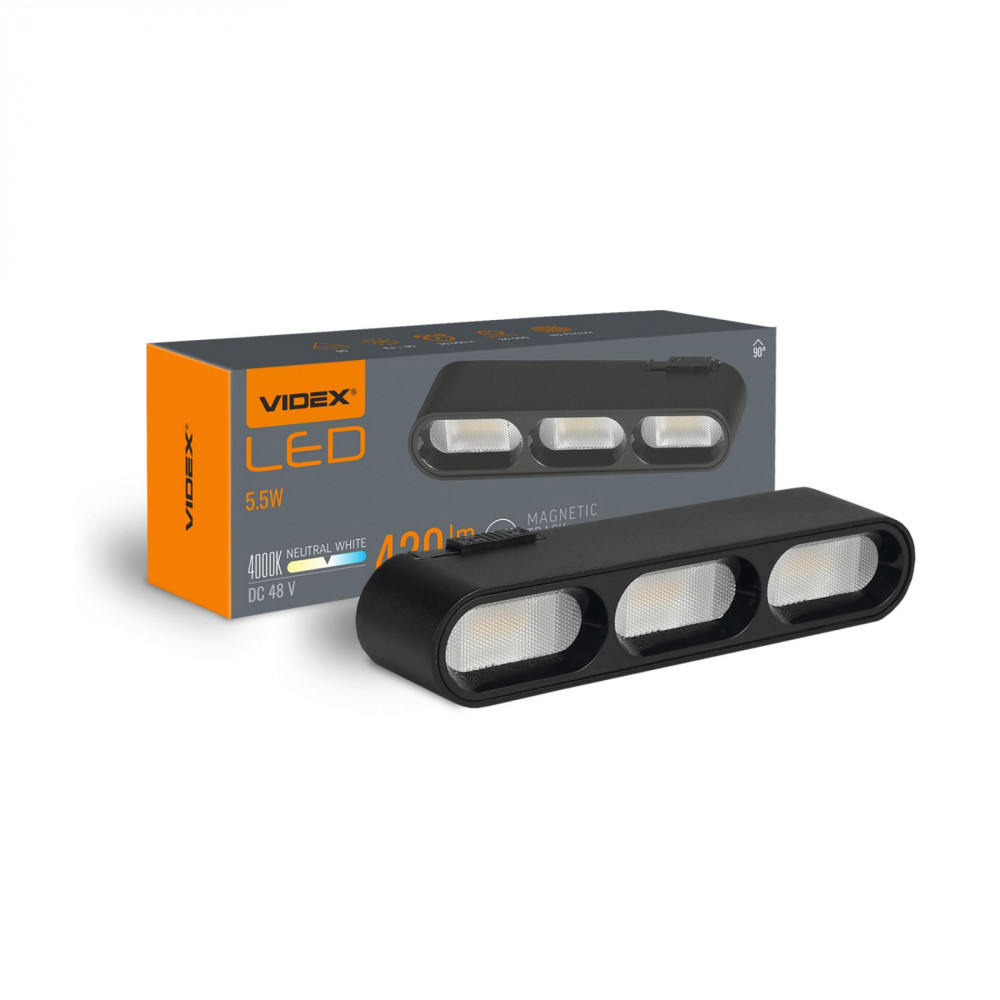

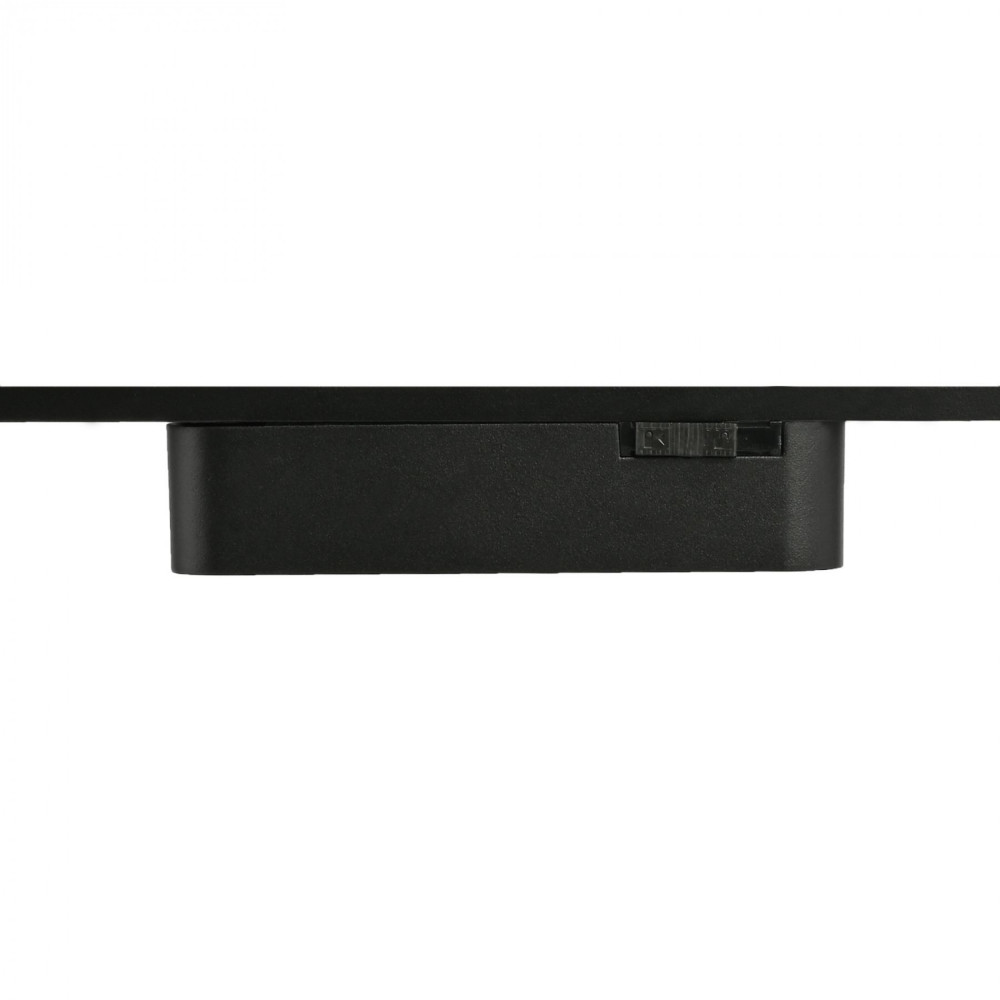

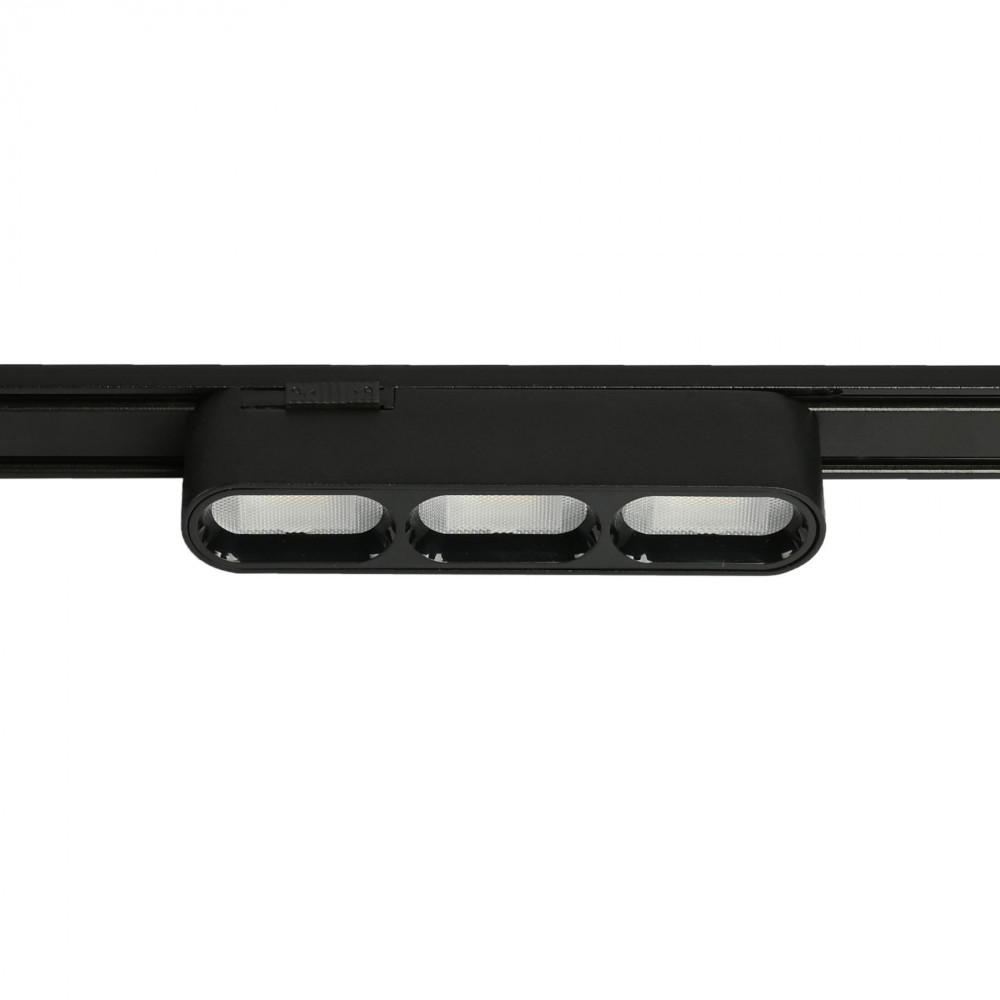

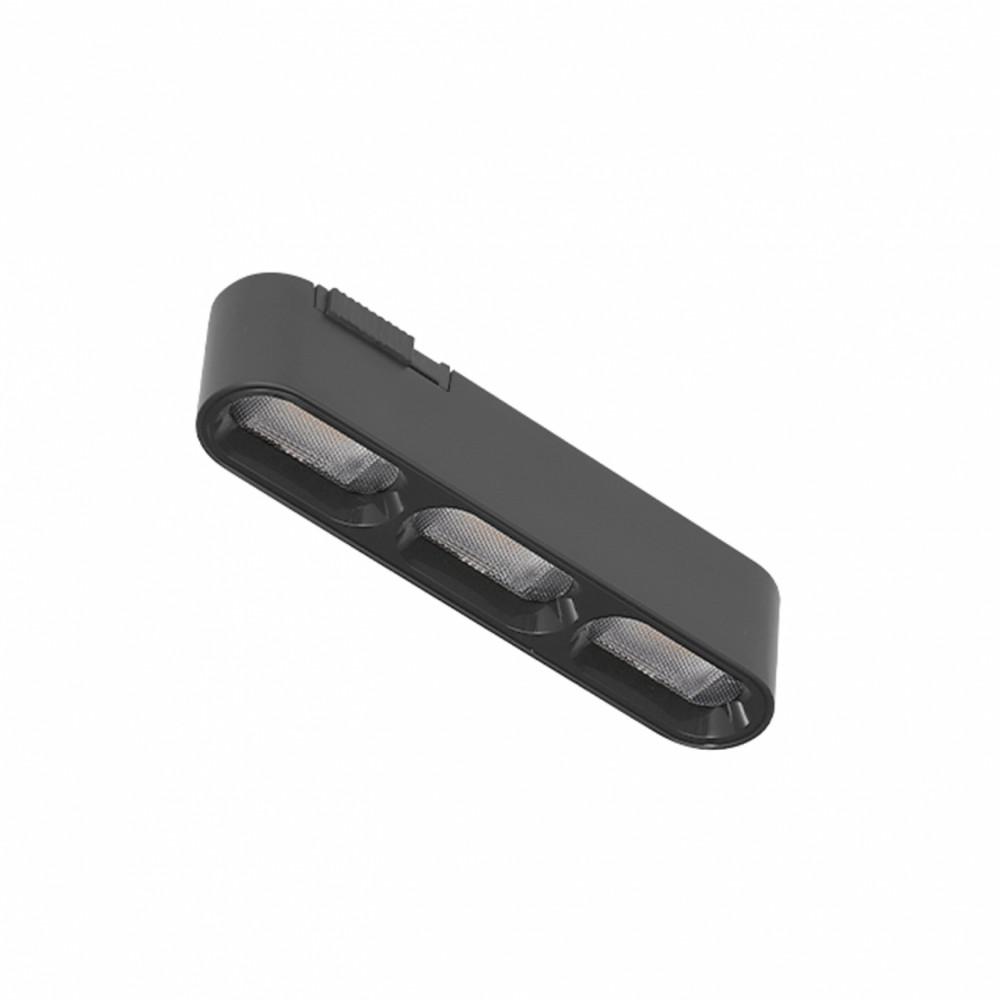

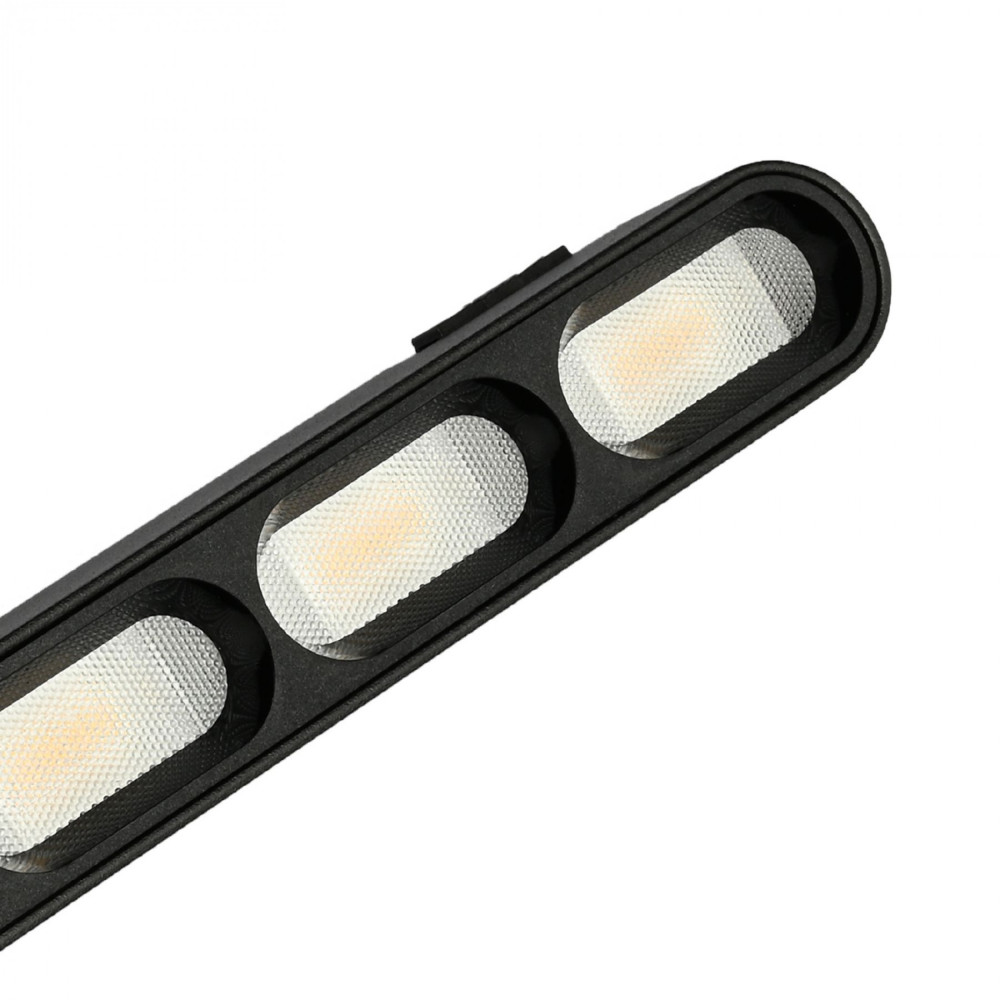

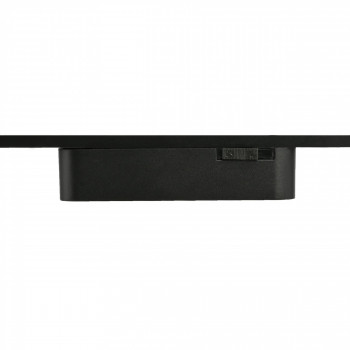

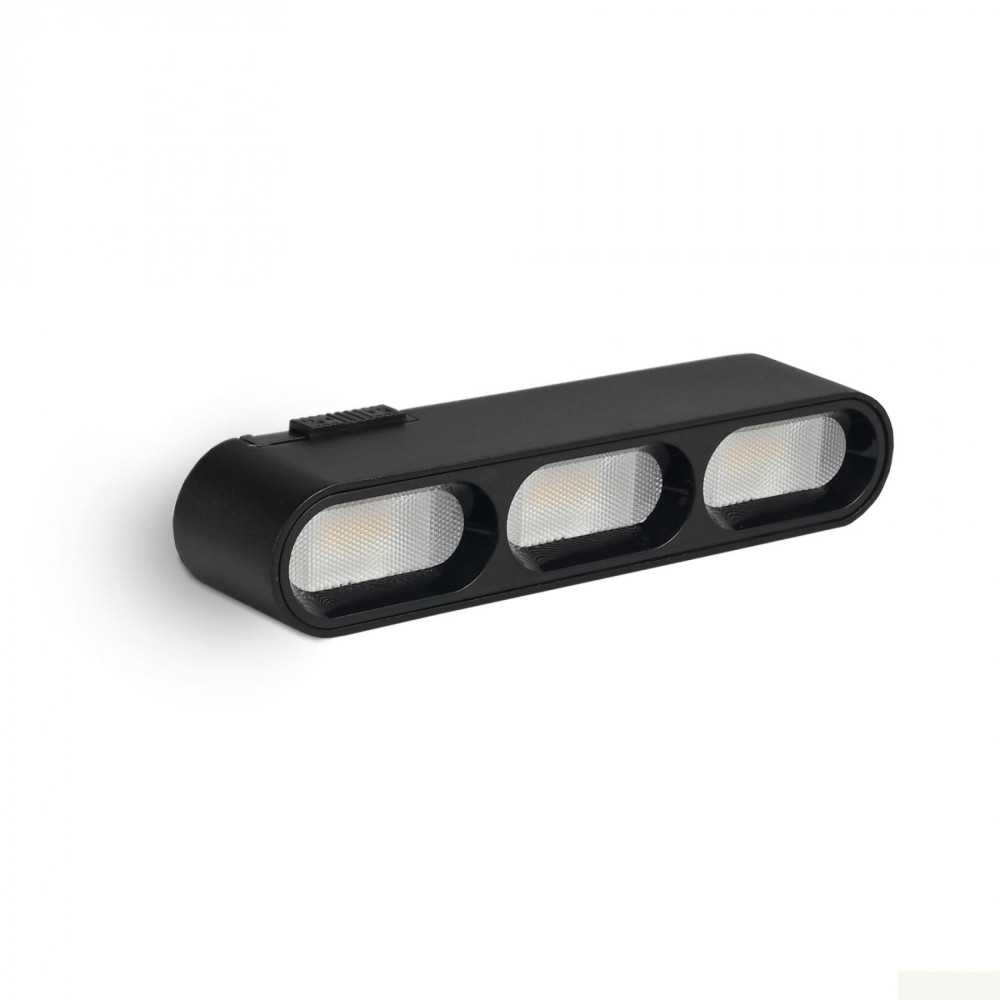

LED Light for Magnetic slim track light system VIDEX VL-TRMS-LD13B Black

Home PRODUCTS Track and Spot Lights Magnetic Track Lights

SKU code:

VL-TRMS-LD13B

BAR code:

4820246485739

Energy class:

On-mode power (W):

5.5
Useful luminous flux of the light source (Lm):

420
Correlated color temperature (K):

4000
Energy class:

G
Rated voltage (V), frequency (Hz):

DC 48V
Beam angle (°):

90
Place of application:

Used for magnetic track
Color rendering index (CRI):

Ra > 90
Lifetime (h):

30 000h
On/Off cycles:

20 000
Ingress protection (IP):

IP20
Warranty (y):

3
Operating temperature range (°C):

-20°C ~ + 45°С
Dimmable:

No

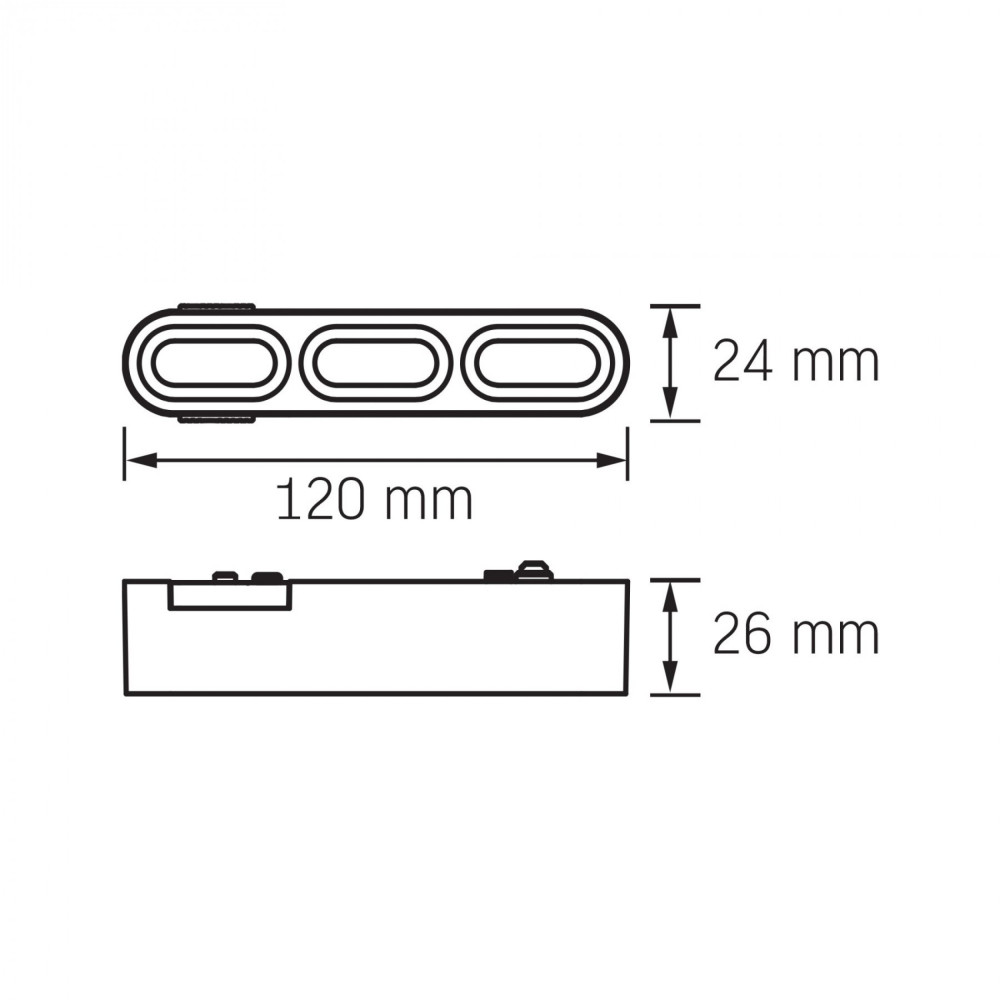

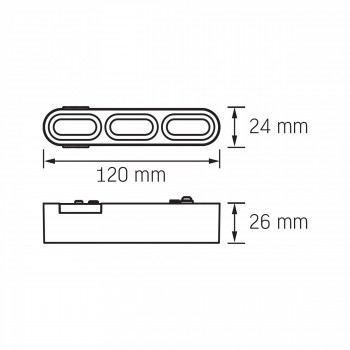

Measurements (mm):

120mm x 24mm x 26mm
Outer box:

50
Housing colour:

Black
Housing material:

Aluminum + polycarbonate + acrylic

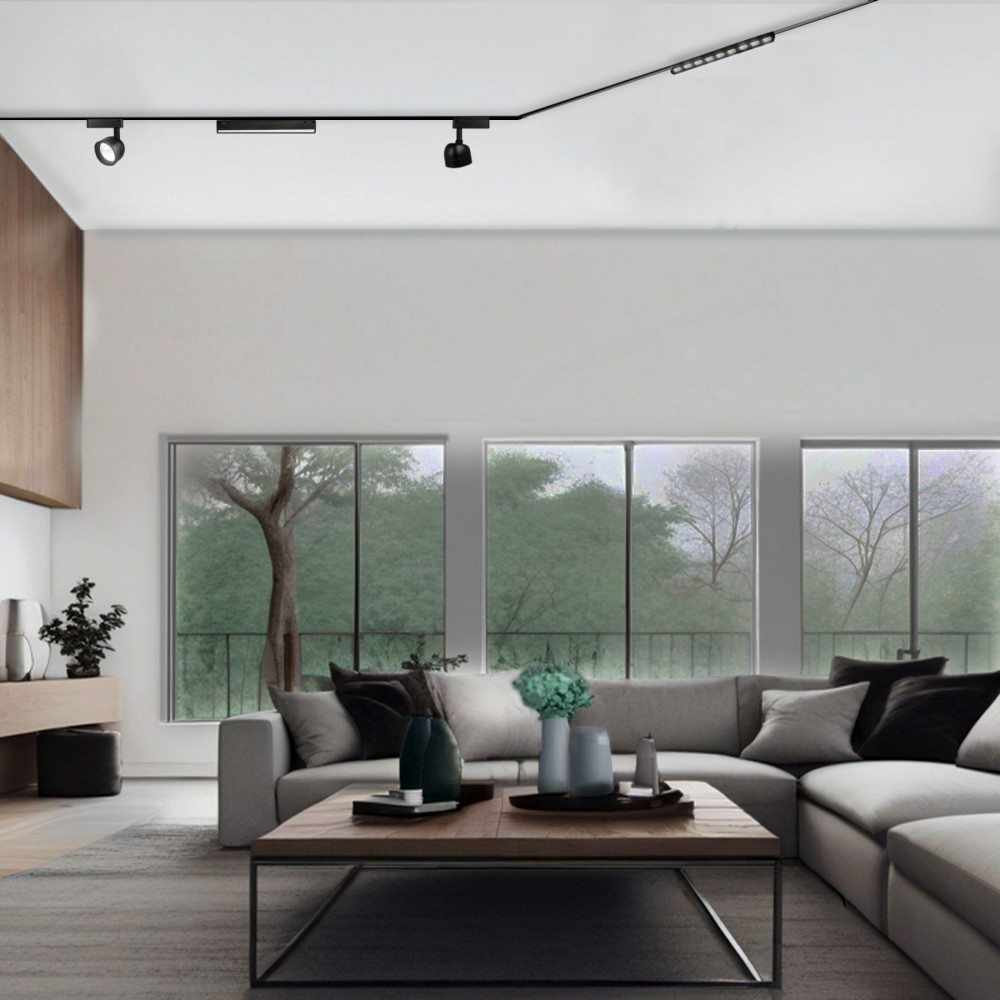

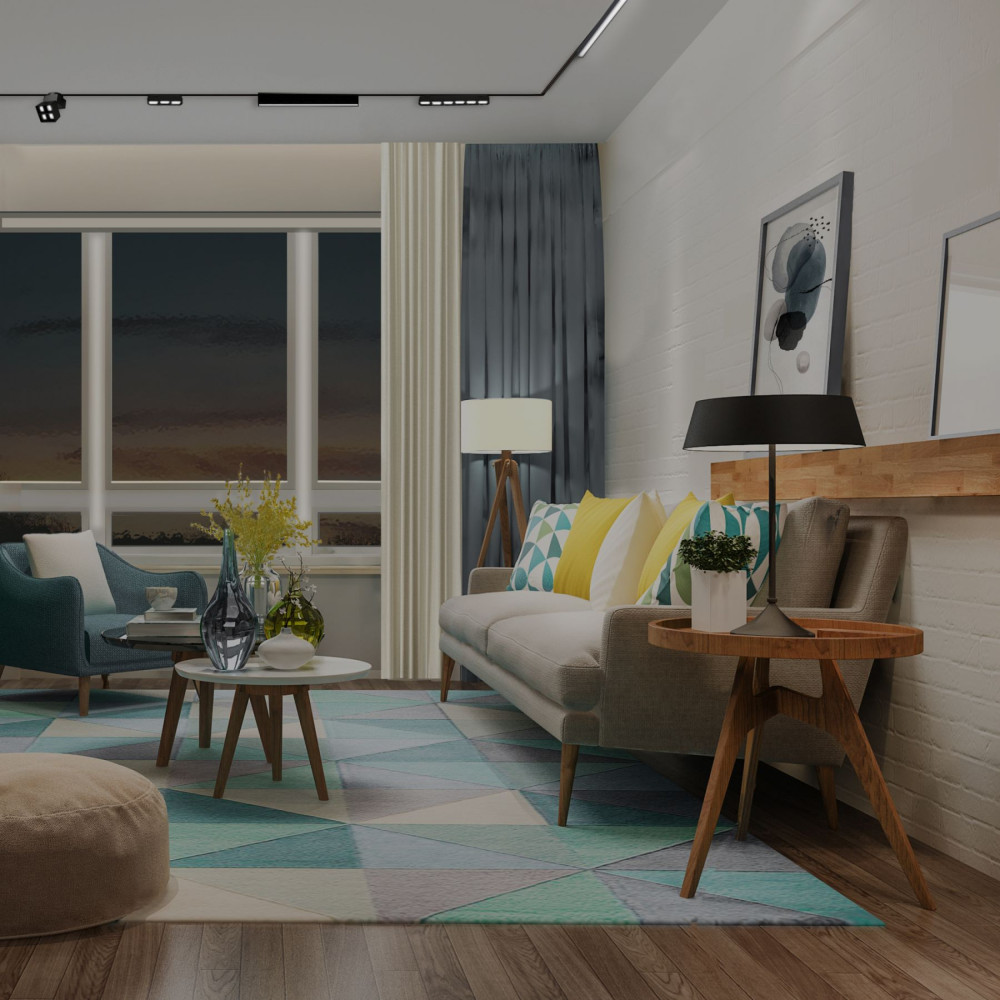

LED Light for Magnetic slim track light system VIDEX VL-TRMS-LD13B is designed for general lighting of all indoor spaces. ADVANTAGES AND FEATURES OF THE LIGHT:- power – 5.5W- rated for 20 000 ON/OFF cycles- luminous flux – 420Lm- beam angle – 90°- color temperature – 4000K- service life – 30 000 hours- minimum distance from the illuminated object – 0.5m- ingress protection – IP20 (the product may only be used in dry indoor areas) PACKAGE CONTENTS:- Light fixture- User manual- Individual packaging INSTALLATION AND CONNECTION INSTRUCTIONSRead the manual before installation. The product can only be installed on modular tracks of the VL-TRMS-FT*** series, which are supplied separately. WARNING! This product must not be connected directly to a 220V mains supply. The fixture is powered by a low-voltage 48V system from external power supply units of the VL-TRMS-P**** series, which are supplied separately. One power supply unit can power several luminaires of different shapes within the same series. The total power of the luminaires must not exceed the maximum rated power of the power supply unit. Complete the installation and connection of the modular tracks and the power supply. Installation and connection of the track system and power supply must be carried out by a qualified specialist. All installation and connection work must be performed with the power switched off. Install the luminaire onto the track (see the manual). Before first use, check the correctness of the mechanical installation and wiring connections. The product may only be used with an electrical network that meets the energy requirements and quality standards established by law. This product may be stored and used only in a dry environment and without exposure to direct sunlight. WARNING! Do not look directly at the LED beam.
