Sensor VIDEX VL-SPC12B, 8m, 10sec-7min, 10-2000lx, 360*, IP20, black

Sākums PRODUCTS Electrical Accessories Sensors

SKU kods:

VL-SPC12B

Svītru kods:

4820246484626

Manuālis:

On-mode power (W):

1202 / 300 W infrared
Rated voltage (V), frequency (Hz):

220-240 V, 50/60 Hz
Beam angle (°):

360
Place of application:

Indoor
On/Off cycles:

10sec-7min
Ingress protection (IP):

IP20
Warranty (y):

2
Operating temperature range (°C):

-20°C ~ + 40°С
Dimmable:

< 10 -2000 Lx

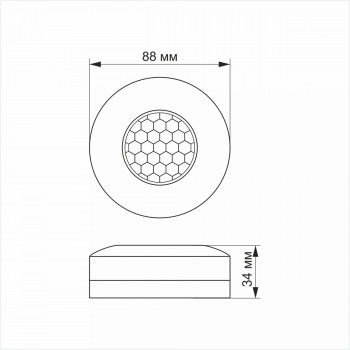

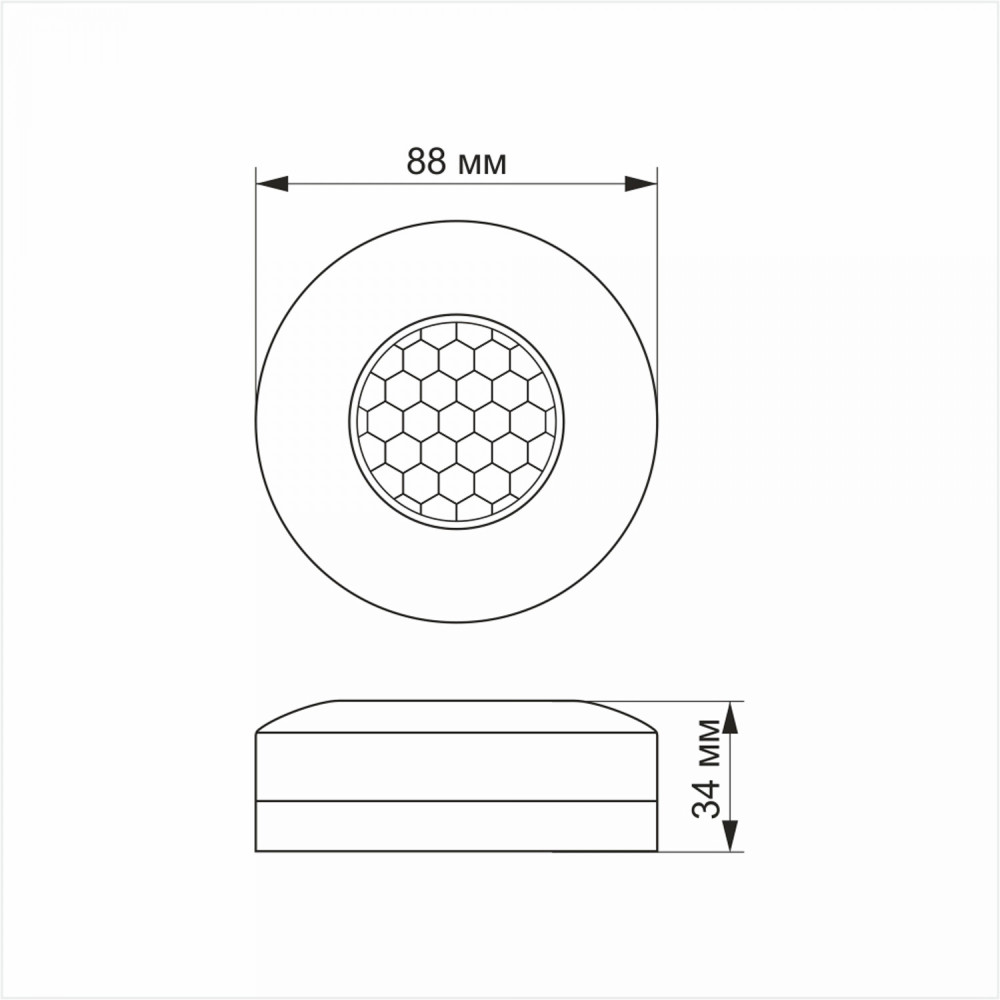

Measurements (mm):

88x34
Outer box:

50
Housing colour:

Black
Housing material:

Plastic
Motion sensor:

Yes
Range (Distance in m):

8m

An infrared motion and light sensor allows you to control the lighting system and captures the movement of objects. The sensor automatically turns on and off the lighting in the room depending on the detection of movement in its field of action. It is widely used for lighting industrial, warehouse, park, adjoining areas, recreation areas, roads. The recommended installation height is 2,2-4m. Delay - 10s -7min. Has a high degree of dust and moisture protection IP20. Response time - 0.6-1.5m/s. Allows you to adjust the light threshold in the range from 10Lx to 2000Lx. Detection distance from 8m (at temperatures <24 °).
